Choosing the wrong tanker equipment for your liquid bulk shipment doesn't just create a logistics inconvenience — it can contaminate your product, create a safety hazard, trigger a DOT violation, or all three simultaneously. Understanding the equipment options and matching them correctly to your product is one of the most critical decisions in chemical shipping.
Here's a comprehensive guide to the tanker equipment used in liquid bulk transport.
Tanker trailer types by material

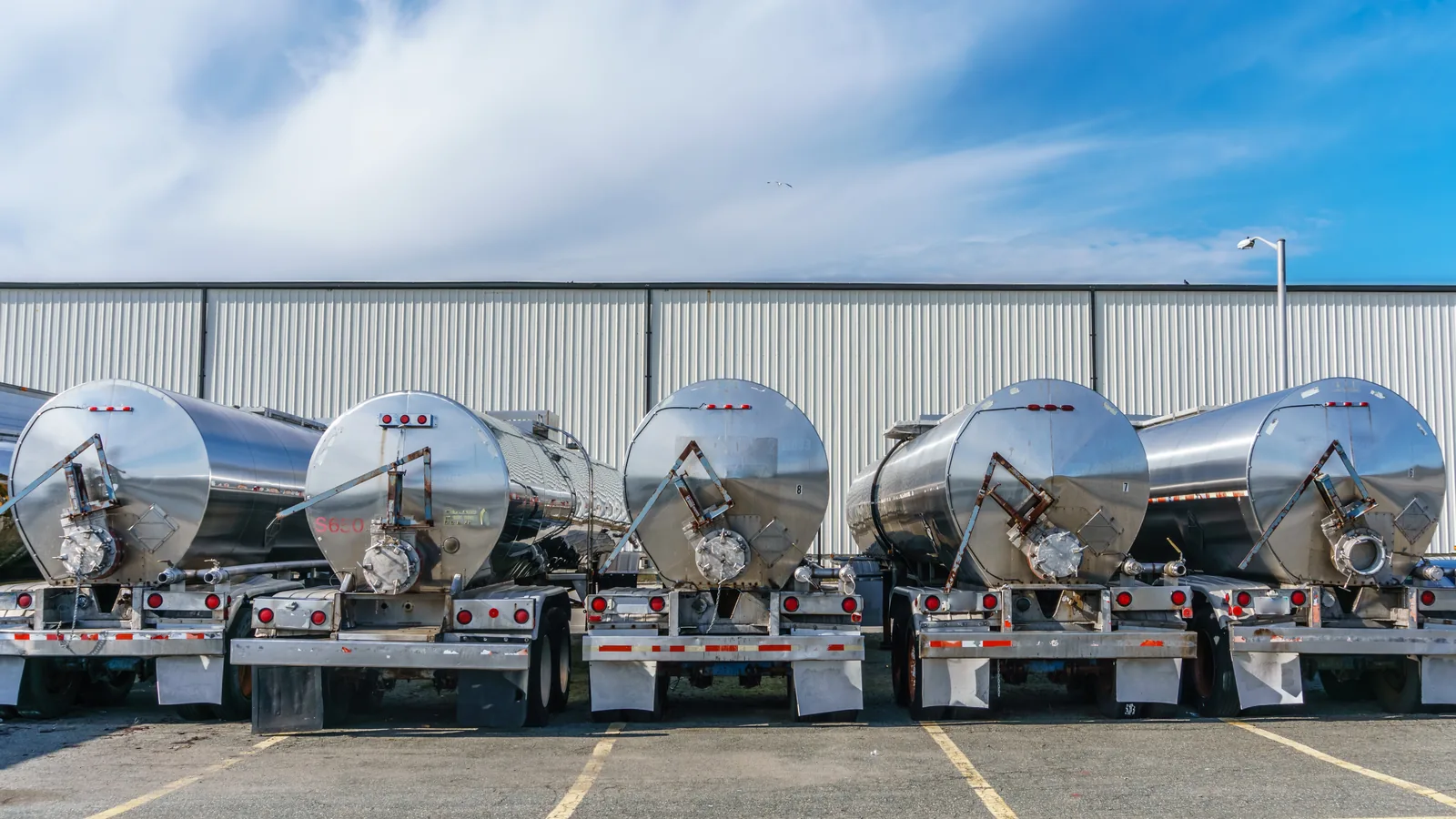

Stainless steel tankers
The most versatile and most common tanker type for chemical freight. Stainless steel resists corrosion from most chemicals, cleans thoroughly, and maintains product purity. Available in several alloy grades — 304, 316, and 316L being the most common for chemical service. 316 stainless offers higher nickel content and better resistance to chloride corrosion than 304.
Aluminum tankers
Lighter than stainless steel, allowing more payload per trip before hitting DOT weight limits. Commonly used for petroleum products, some food-grade liquids, and non-corrosive chemicals. Not suitable for strong acids, strong alkalis, or chlorinated chemicals that attack aluminum.
Rubber-lined tankers
Stainless steel or carbon steel tanks lined with butyl rubber or other elastomeric materials. Used for corrosive chemicals — acids, caustic solutions, and other products that would attack bare metal. The rubber lining provides a chemical barrier between the product and the tank shell.
FRP (fiberglass reinforced plastic) tankers
Used for corrosive chemicals and some food-grade products. FRP tanks are lightweight, corrosion-resistant, and don't react with most chemicals. However, they're more fragile than metal tanks and can be damaged by impact.
Tank configurations
Single compartment vs. multi-compartment
Single compartment tanks carry one product per load. Multi-compartment tanks — with 2, 3, 4, or even 5 separate compartments — can carry different products simultaneously. Each compartment has its own loading dome and unloading valve. Multi-compartment tanks are cost-effective for smaller volume shipments but add complexity to tank wash management.
Insulated vs. non-insulated (skin tanks)
Insulated tanks have a layer of fiberglass between the inner tank and outer shell, creating a thermos effect that maintains product temperature during transit. Non-insulated tanks (skin tanks) have no insulation — the product temperature changes with ambient conditions. Most chemical tankers are insulated due to the temperature sensitivity of many chemical products.
Heated vs. non-heated
In-transit heat systems use engine antifreeze circulated through coils in the tank floor to maintain product temperature. Dedicated heated tankers have independent diesel-fired heating systems for higher temperature requirements. Non-heated tankers rely on insulation alone.
Loading and unloading systems
Top loading vs. bottom loading
Top loading uses the manhole dome at the top of the tank. Bottom loading uses valves underneath the trailer. Bottom loading reduces vapor emissions and is required for some volatile chemicals.
Pump-off vs. air-blown unloading
Pump-off uses a pump to move product from the tank to the receiving facility's storage. Air-blown unloading uses compressed air to push product out of the tank. The choice depends on the product — flammable liquids should not be unloaded with compressed air due to static electricity risk. Corrosive liquids should not be pumped through metal pumps.
Center unload vs. rear unload
Center unload tanks have a sump and valve in the middle of the tank floor. Rear unload tanks have the valve at the rear. The choice depends on the receiving facility's configuration and unloading infrastructure.
DOT specification tanks
DOT 407 — the standard specification for most non-pressure chemical tanker trailers. Maximum capacity around 7,000 gallons. Used for the majority of liquid bulk chemical freight.
DOT 412 — a corrosive-service specification designed for strong acids and caustics. Higher construction standards than DOT 407 with additional safety features.
MC 331 — a pressure tank specification for compressed gases and liquefied gases. Used for anhydrous ammonia, propane, and other products that must be transported under pressure.
How to choose the right equipment
Equipment selection starts with four questions. What is the chemical product and what does its SDS say about material compatibility? What are the temperature requirements — does the product need to be heated, insulated, or ambient? What are the loading and unloading requirements at both origin and destination? What hazmat classification applies and what DOT tank specification is required?
Your liquid bulk freight broker should be able to answer all four questions and match you with a carrier who has the right equipment. If they can't — or if they need you to specify the equipment — they're not a liquid bulk specialist.
